Detalhes do produto:
|
| Número do modelo: | GJFJV-B-001 | Nome do produto: | Cabo de fibra ótica de 12 núcleos |
|---|---|---|---|
| Modelo: | Simples | Material do revestimento: | LSZH/PU/PVC |
| Tipo de cabo: | Amortecedor apertado Biber With Aramid Yarn | Fogo - retardador: | sim |
| Oem: | Disponível | Aplicação: | Patchcord, trança |
| Realçar: | 24 cabos óticos Singlemode das fibras,Cabo Singlemode da fibra OS2,Cabo da fibra de GJFJV OS2 |
||
Description:

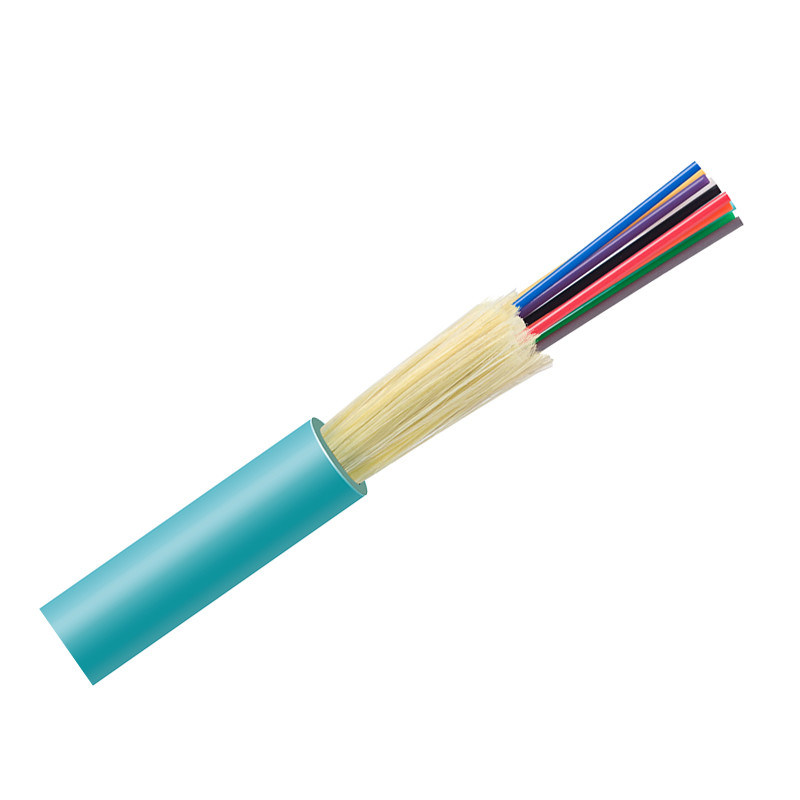

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.
Standards:
Products Features:
Optical Characteristics:
| G.652D | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | |
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | |||
| @1550nm | ≤0.22 dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc | ≤1260nm | |||
Cable diameter:
| MPC-02 | MPC-04 | MPC-06 | MPC-08 | MPC-10 | MPC-12 | |
| Cable Diameter(mm) | 4.1±0.25 | 4.8±0.25 | 5.1±0.25 | 6.2±0.25 | 6.5±0.25 | 6.8±0.25 |
| Cable Weight(kg/km) | 12 | 20 | 24 | 29 | 32 | 35 |
| Tight Buffer Fiber Diameter |
900±50μm |
|||||
Mechanical Characteristics:
| Tensile Strength | Long Term | 80N | 60 | 50 |
| Short Term | 150N | 120 | 100 | |
| Crush Resistance | Long Term | 100N/100mm | 100N/100mm | 100N/100mm |
| Short Term | 500N/100mm | 500N/100mm | 500N/100mm | |
| Bending Radius | Dynamic | 20XD | 20XD | 20XD |
| Static | 10XD | 10XD | 10XD |
