Divisor do PLC da fibra ótica do conector do SC UPC APC de FTTH 1x2 1x4 1x8 1x16

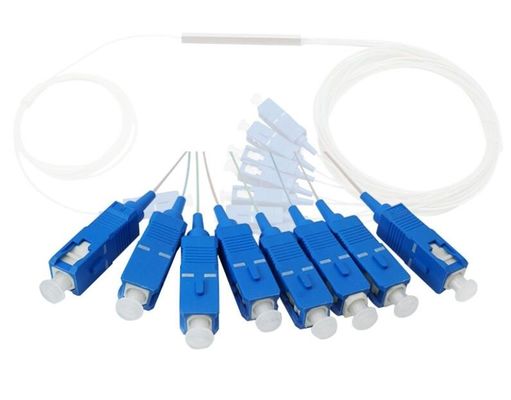

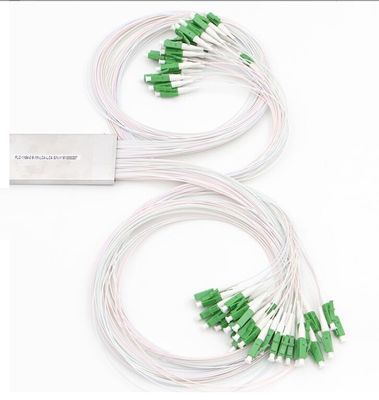

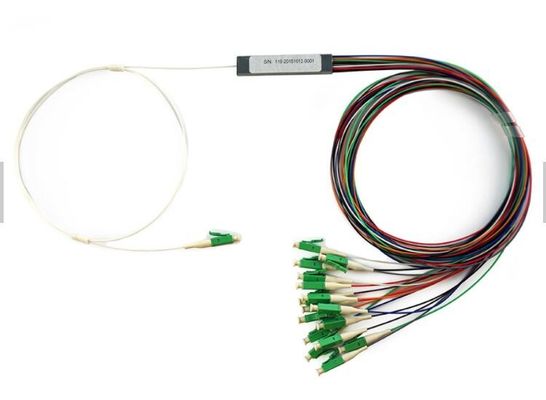

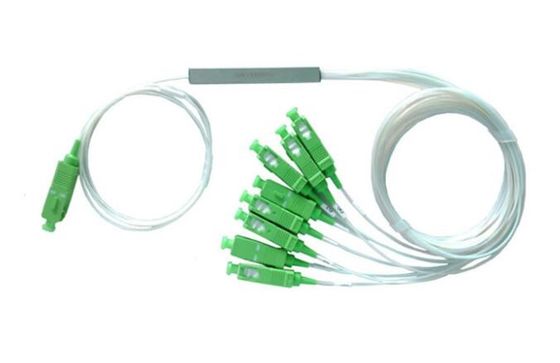

FTTH 1x2 1x4 1x8 1x16 Fiber Optic PLC Splitter SC UPCAPC Connector



               Features

1. Low Insertion loss

2. Low PDL

3. Compact Design

4. Good channel-to-channel uniformity

5. Wide operating wavelength:from 1260nm to 1650nm

6. Wide operating temperature: from-40°C to 85°C

7. High reliability and stability

Specification:



Parameter	Specification
Operating Wavelength (nm)	1260 ~ 1650
Type	1x4	1x8	1x16	2x4	2x8	2x16	1x32	2x32	1x64
Insertion Loss (dB) Max. *	<7.3	<10.5	<13.5	<7.6	<11.2	<14.5	<16.2	<18.2	<20.5
Uniformity (dB) Max.*	<0.8	<1.0	<1.5	<1.0	<1.5	<2.0	<2.0	<2.5	<2.5
PDL(dB)Max.*	<0.2	<0.2	<0.3	<0.3	<0.3	<0.4	<0.3	<0.4	<0.3
Directivity (dB) Min *	55
Return Loss (dB) Min *	55(50)
Operating Temperature (°C)	-5~ +75
Storage Temperature (°C)	-40 ~ +85
Fiber length	1m or custom length
Fiber Type	Corning SMF-28e fiber
Connector Type	Custom specified
Power Handling (mW)	300

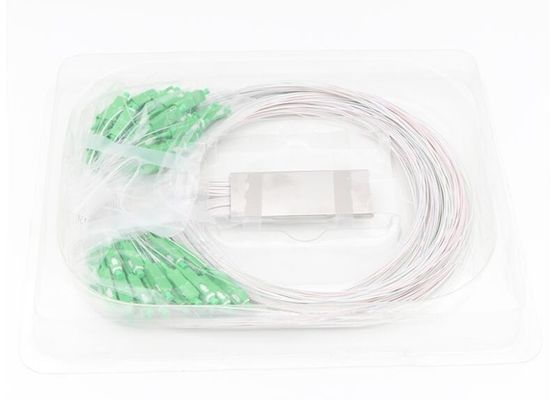

Inner packing



QTY(Blister Box/Girt Box)	10-50pcs
Inner packing	PP bag
Outer packing	Carton box



           Application
